Certificates

Belune obtains and renews HTTPS certificates for you. This page explains the three SSL modes, how to read a domain's TLS status, and how to run behind Cloudflare in Full (strict) — the recommended proxied setup.

The Three SSL Modes

Set per-domain under an application's Domains tab.

What Automatic Mode Needs

Let's Encrypt validates control of the domain by connecting to it from the public internet. All three must be true:

1. DNS points to your instance — an A or AAAA record for the exact hostname resolving to Belune server's public IP.
2. Port 80 is reachable — this is the HTTP-01 challenge, and it is not optional even though the site runs on 443.
3. Port 443 is reachable — so the certificate can be served once issued.

Reading the TLS Status

Every domain shows a TLS badge, click it for the issuer, expiry, last check, and any error.

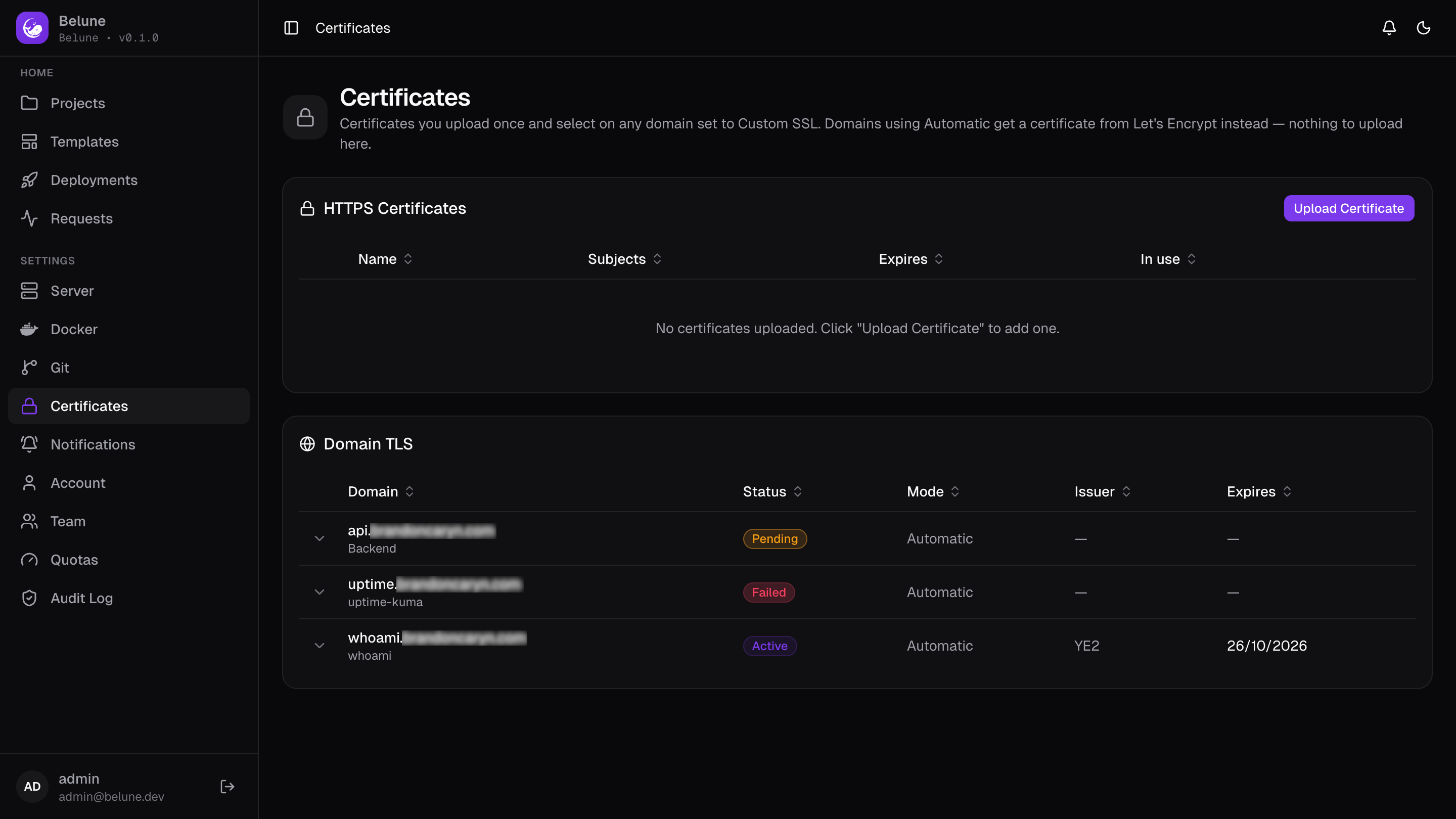

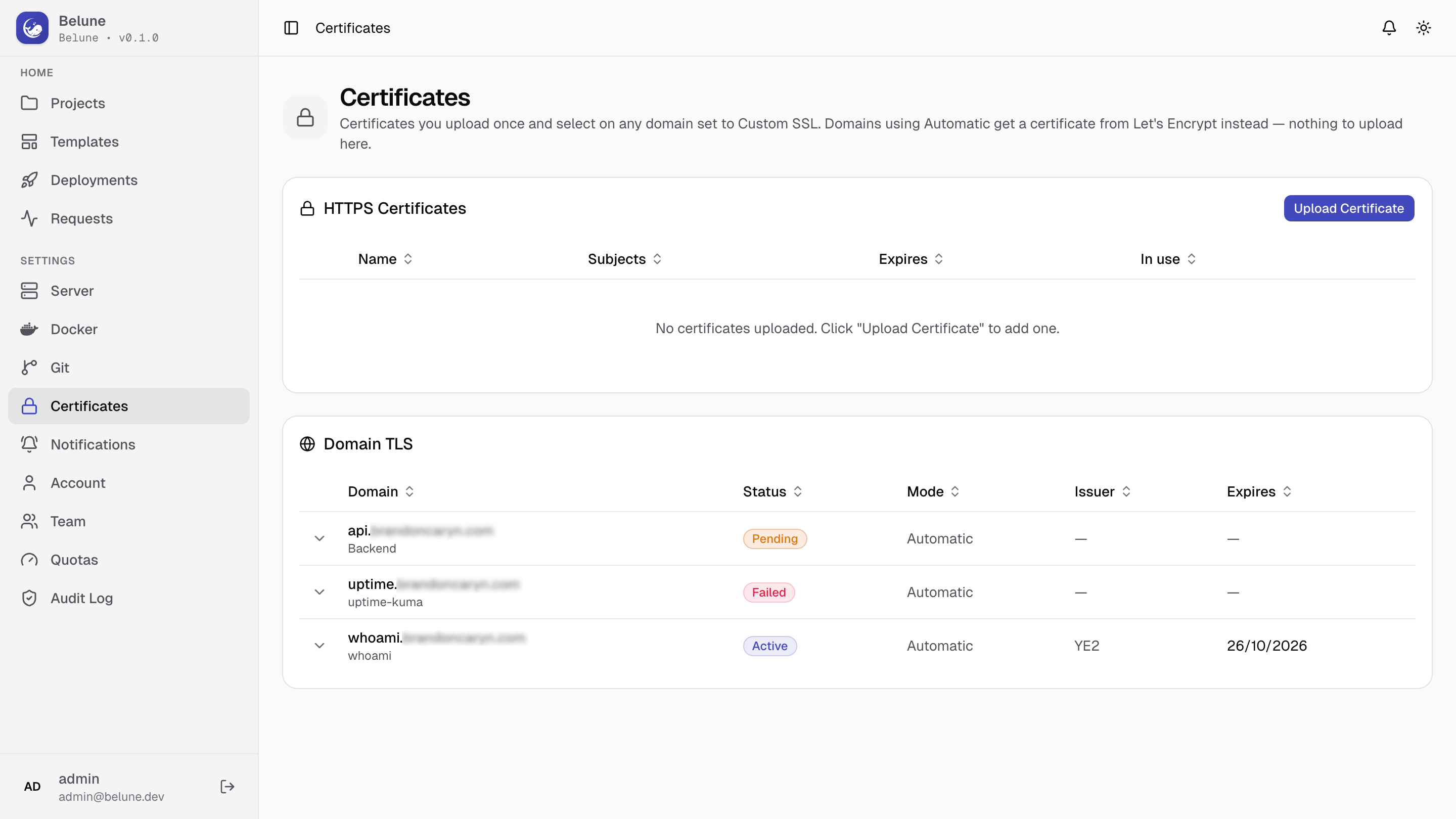

Settings → Certificates lists every domain's status in one table. The domain's status is what Belune has observed on the wire.

Recheck now in the badge re-probes immediately — use it after fixing DNS or a firewall.

Common Failures

The reason in the badge comes from Caddy's logs, so it is the ACME server's actual complaint.

• "…resolves to X, not this server" — the DNS A or AAAA record points elsewhere. Fix it, then Recheck now. (Expected and harmless behind Cloudflare's proxy; issuance still works — see below.)
• "…does not resolve" — no DNS record exists. Create one.
• rateLimited — Let's Encrypt rate-limits repeated failures, per domain per week. Fix the underlying cause first; the limit expires on its own.
• caa — a CAA record forbids Let's Encrypt. Remove it or add letsencrypt.org.
• Connection refused / timeout — port 80 isn't reachable. Check the host firewall and the cloud provider's security group (usually the latter).

Cloudflare

With Cloudflare proxying enabled (orange cloud), Cloudflare terminates TLS for your visitors and forwards requests to your server. The hop between Cloudflare and you is a second, separate connection. We recommend setting TLS to Full (strict).

Using Let's Encrypt Certificate

Automatic works behind the orange cloud. Cloudflare forwards the ACME challenge to your origin, so Let's Encrypt validates and issues normally. The simplest supported setup:

1. In Cloudflare, set SSL/TLS → Overview → Full (strict).
2. Leave the domain on Automatic and wait for its badge to reach Active
3. Belune now holds a publicly-trusted Let's Encrypt certificate.

Using a Cloudflare Origin CA Certificate

An Origin CA certificate is an alternative — valid up to 15 years, not subject to ACME rate limits, trusted only by Cloudflare.

1. In Cloudflare, SSL/TLS → Overview, set Full (strict).
2. In Cloudflare, SSL/TLS → Origin Server → Create Certificate. Cover the hostnames you need (e.g. example.com and *.example.com).
3. Copy both the Origin Certificate and the Private Key (shown once).
4. In Belune, Settings → Certificates → Upload Certificate, paste both PEM blocks. Belune verifies the pair and reads the hostnames off it.
5. On the application's Domains tab, set the domain's SSL mode to Custom and pick the certificate.

Check which certificate your origin is really serving (the browser sees Cloudflare's edge cert, not your origin's):

echo | openssl s_client -connect <server-ip>:443 -servername belune.example.com \
  2>/dev/null | openssl x509 -noout -subject -issuer

Wildcards

Let's Encrypt only issues wildcards over a DNS challenge, which the stock Caddy image can't do. Each app domain gets its own certificate automatically, which covers the normal case. If you genuinely need a wildcard, issue it elsewhere and upload it as a Custom certificate.
